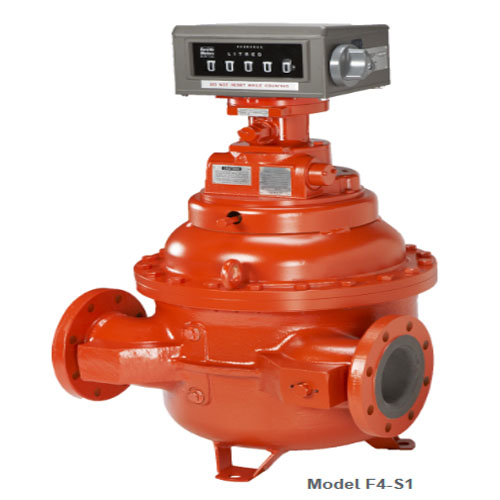

Double Case 4” Steel Model F4
Brand: TechnipFMCPenjelasan Produk :
4” Steel Model F4
Smith Meter PD Rotary Vane Meter
The Smith Meter Model F4 Meter is a 4”, double-case, straight-through rotary vane, positive displcement meter. Applications include: blendding, batching, dispensing, invntory control, and custody transfer of oils, solvents, chemicals, paints, fats and fertilizers.
|
Maximum Working Pressurre |
|||
|
Model |
Flange |
PSI⁶´⁹ |
kPa⁶´⁹ |
|
F4-S1 |
150 |
150 |
1.034 |
|
F4-S3 |
150 |
285⁶ |
1.965⁶ |
|
F4-S5 |
300 |
300 |
2.068 |
|
F4-S6 |
300 |
740⁶ |
5.102⁶ |
|
F4-S7 |
600 |
1.480⁶ |
10.204⁶ |
|
F4-S8 |
900 |
2.220⁶ |
15.306⁶ |
|
F4-V3 |
150 |
285⁶ |
1.965⁶ |
|
Maximum Flow Rate |
||
|
|
USGPM |
L/min |
|
Continuous Rating - Standard Trim |
600 |
2.250 |
|
Intermittent Rating¹ - Standard Trim |
720 |
2.725 |
|
Continuous /Intermittent Rating - All Iron or LPG Trim |
450 |
1.700 |
|
Minimum Flow Rate |
|||||||
|
Typical Performance |
|||||||
|
Linearity² |
Units |
Viscosity (Centipoise - cP) |
|||||
|
0.5 |
1 |
5 |
20 |
100 |
400 |
||
|
±0.15% |
USGPM |
100³ |
60 |
25 |
6 |
1.25 |
0.30 |
|
L/min |
375³ |
227 |
95 |
23 |
4.75 |
1.14 |
|
|
±0.25% |
USGPM |
75 |
45 |
18 |
4 |
1.00 |
0.25 |
|
L/min |
284 |
170 |
68 |
15 |
3.80 |
0.95 |
|
|
±0.50% |
USGPM |
50 |
30 |
12 |
3 |
0.60 |
0.15 |
|
L/min |
190 |
114 |
45 |
11 |
2.25 |
0.57 |
|
